Equipamentos para Perfuração de solos, fundações , poços de água, Geotermia , Gruas de rastos

Equipamentos para :

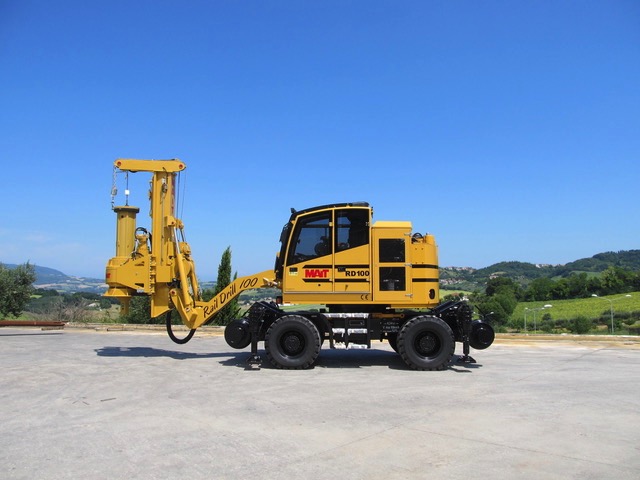

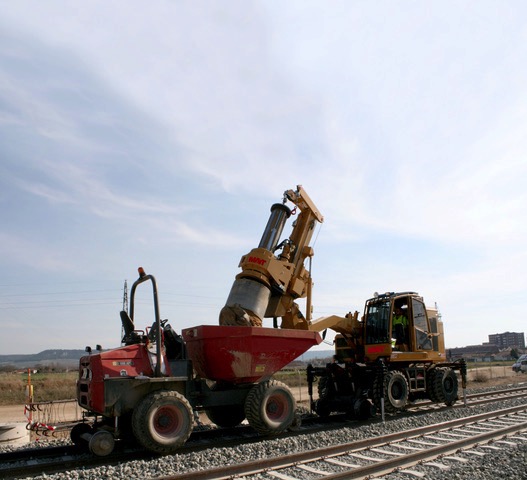

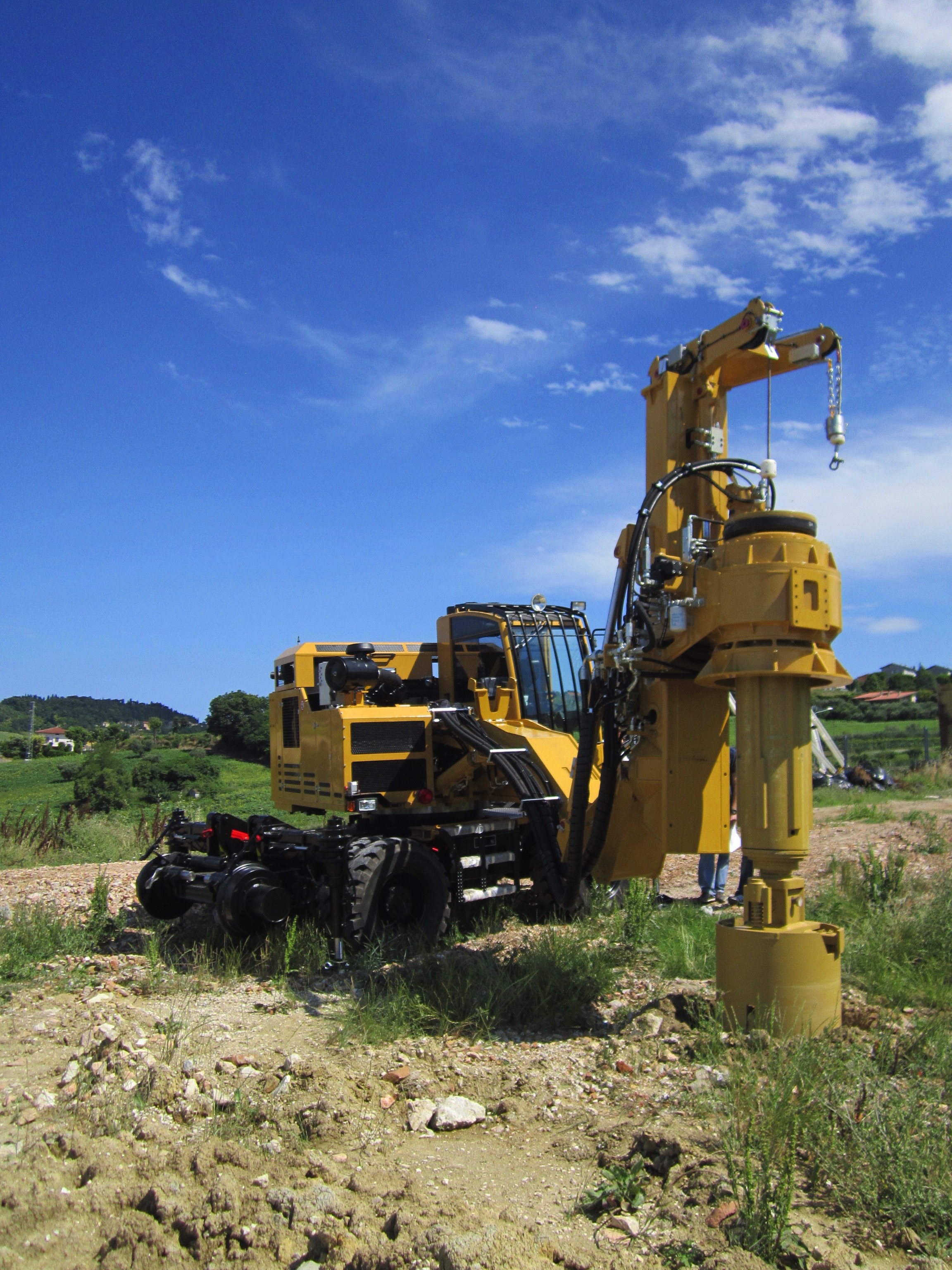

-Rail Drill

K.B. – 38 Mt. Pile max – Ø1500 Torque – 122 KNm Engine – 120 Kw Weight – 35 Ton

K.B. – 33 Mt. Pile max – Ø1600 Torque – 160 KNm Engine – 162 Kw Weight – 45 Ton

K.B. – 42 Mt. Pile max – Ø1800 Torque – 205 KNm Engine – 187 Kw Weight – 54 Ton

K.B. – 46 Mt. Pile max – Ø2000 Torque – 260 KNm Engine – 261 Kw Weight – 69 Ton

K.B. – 46 Mt. Pile max – Ø2000 Torque – 275 KNm Engine – 305 Kw Weight – 80 Ton

K.B. – 45 Mt.Pile max – Ø2500 Torque – 310 KNm Engine – 328 Kw Weight – 91 Ton

K.B. – 55 Mt. Pile max – Ø3000 Torque – 330 KNm Engine – 355 Kw Weight – 110 Ton

Kelly bar traditional Technology

K.B. – 74 Mt. Pile max – Ø4000 Torque – 460 KNm Engine – 390 Kw Weight – 165 Ton

Soil mixing Technology

Depth – 40 Mt.

Pile max – Ø1500

A cutting rotary – 210 KNm

B mixing rotary – 210 KNm

C clamping rotary – 210 KNm Engine – 390 Kw

Weight – 170 Ton

Outros modelos

K.B. – 38 Mt. Pile max – Ø1500 Torque – 140 KNm Engine – 169 Kw Weight – 39 Ton

K.B. – 42 Mt. Pile max – Ø 2000 Torque – 215 KNm Engine – 254 Kw Weight – 60 Ton

K.B. – 46 Mt.Pile max – Ø2300 Torque – 290 KNm Engine – 328 Kw Weight – 84,5 Ton

-Ferramentas Trados ,Baldes, baldes com dentes
